VSDX Trace

Turn raster diagrams into high-fidelity, independently editable Microsoft Visio files.

CI CodeQL Release License: MIT

English · 简体中文

VSDX Trace is an Agent Skill and Python toolchain for reconstructing screenshots, scientific figures, architecture diagrams, and flowcharts as native .vsdx documents. Text, panels, arrows, nodes, and other diagram primitives remain selectable and editable. Raster content is kept only where vector reconstruction is not reasonable.

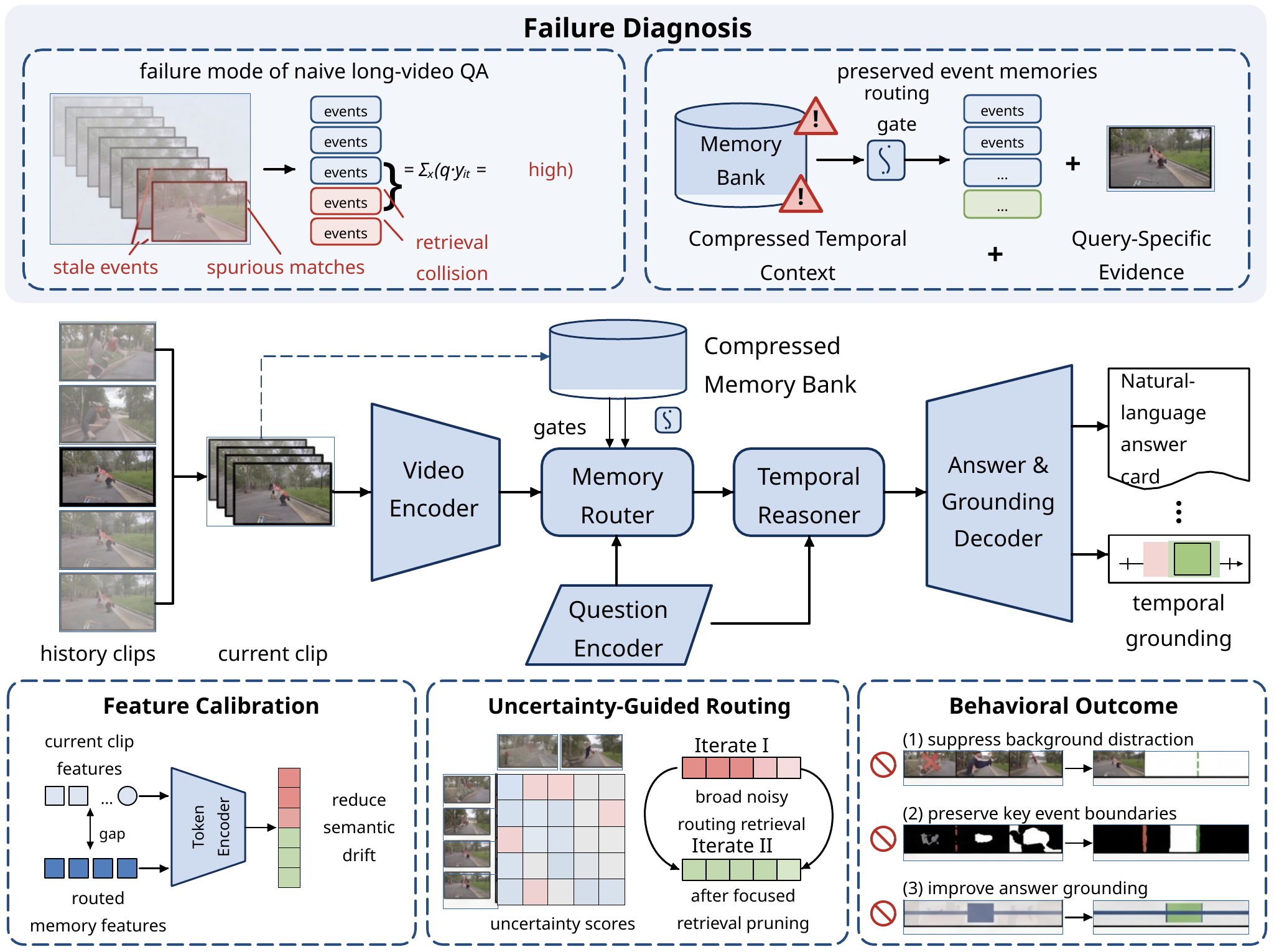

High-fidelity editable VSDX reconstruction

Reference image Rendered editable VSDX

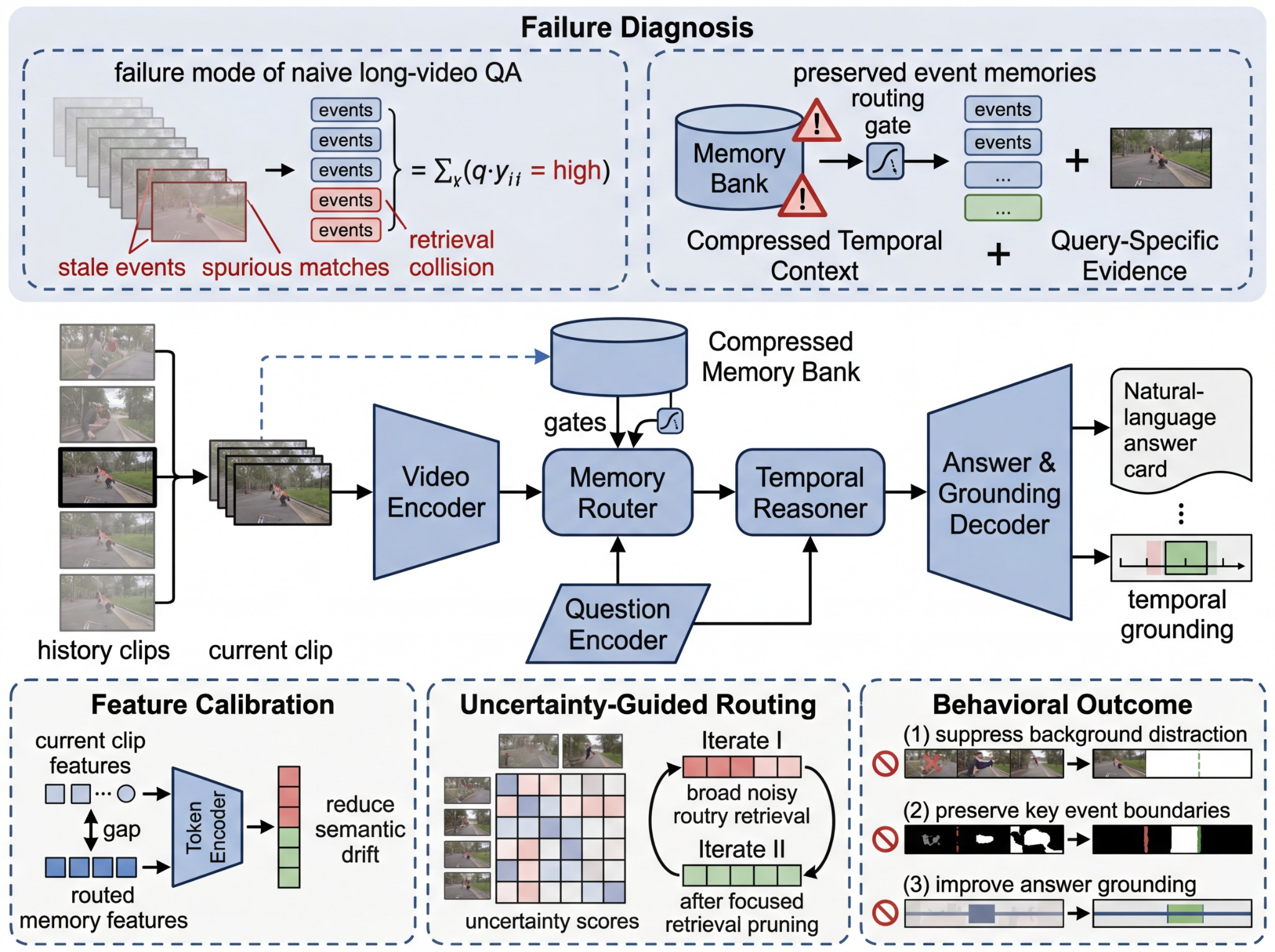

Reference diagram Editable VSDX reconstruction

Why VSDX Trace

Requirement Project guarantee
Editability Main-page text and diagram primitives are native Visio shapes.
Fidelity Source pixels are the layout truth; render-and-compare loops expose drift.
Reliability Every delivery can be structurally validated as an OPC/VSDX package.
Transparency Reports distinguish structural, compatible-renderer, and real Visio testing.
Privacy User references are private by default and enter public marketing only with explicit authorization; installable archives remain sanitized.

[!IMPORTANT] A full-page screenshot may look identical but is not an editable reconstruction. VSDX Trace permits the complete source image only on a separate reference page.

Quick start

Install as a Codex skill

git clone https://github.com/ZJUZhiyuCai/vsdx-trace.git \
  ~/.codex/skills/vsdx-trace

The skill becomes discoverable on the next Codex turn. Other Agent Skills-compatible clients can install the repository as a skill folder containing SKILL.md.

Invoke

Upload a clear reference image and ask:

Use $vsdx-trace to reconstruct this image as a high-fidelity, editable VSDX file.

The default delivery contains:

  • an editable .vsdx file;
  • a first-page PNG preview;
  • a structural validation report;
  • a separate original-reference page when requested.

How it works

  1. Decompose the source into layout, panels, flow, text, micro-elements, and irreducible raster regions.
  2. Record geometry in source-image pixel coordinates.
  3. Generate native Visio shapes and semantic names directly into the VSDX package.
  4. Validate relationships, page parts, shape IDs, and embedded media.
  5. Render with LibreOffice and Poppler, compare against the reference, and iterate on the largest errors.

The scene format and supported primitives are documented in references/SCENE_SCHEMA.md.

Local toolchain

Requirements:

  • Python 3.10+
  • Pillow 10+
  • NumPy 1.26+
  • lxml 5–6
  • optional LibreOffice and Poppler for headless rendering QA

Microsoft Visio is not required to construct a VSDX.

python -m pip install -r requirements.txt
mkdir -p work

python scripts/build_from_scene.py \
  assets/templates/scene-template.json \
  work/example.vsdx \
  --manifest work/example.manifest.json

python scripts/validate_vsdx.py \
  work/example.vsdx \
  --output work/example.validation.json

With LibreOffice and Poppler installed:

python scripts/render_vsdx.py \
  work/example.vsdx work/rendered \
  --dpi 100 --first-page-only

Reproducible benchmark

The bundled Synthetic Event Routing benchmark contains no user-provided material. It exercises custom arrows, cylinders, decoders, matrices, warning symbols, editable text, and local raster fragments.

Metric Recorded result
Editable main-page shapes 269
Editable text shapes 54
Local bitmap shapes 19
Pixel similarity 0.9485
Edge F1, 1 px tolerance 0.8388
Diagnostic score 0.9171

Rebuild it with:

python examples/synthetic_event_routing_case.py \
  --work-dir work/benchmark \
  --output work/benchmark/rebuilt.vsdx

See references/GOLD_STANDARD.md for the full test contract and reproducibility caveat.

Project structure

SKILL.md            Agent instructions and quality contract
agents/             Product-facing skill metadata
scripts/            VSDX build, validation, render, compare, and privacy tools
references/         Scene schema, playbook, OOXML notes, rubric, troubleshooting
assets/templates/   Reusable scene starter
<!-- repo-only:start -->
assets/marketing/   Repository-only public showcase assets
<!-- repo-only:end -->
<!-- full-only:start -->
assets/gold/        Privacy-safe synthetic benchmark
<!-- full-only:end -->
examples/           Runnable end-to-end examples
evals/              Skill behavior evaluations
tests/              Deterministic pipeline tests

Contributing and security

  • Read CONTRIBUTING.md before opening a pull request.
  • Use GitHub Discussions for usage questions.
  • Report vulnerabilities privately according to SECURITY.md.
  • Never submit private reference images, task-specific crops, local paths, or user identifiers.

Reproducibility note

VSDX XML, relationships, metadata, timestamps, and decoded image pixels are reproducible. Lossless PNG byte streams can differ across Pillow or zlib versions while decoding to identical pixels.

License and trademarks

Released under the MIT License. See NOTICE.md for trademark and benchmark-asset notices.

VSDX Trace is an independent community project and is not affiliated with or endorsed by Microsoft or OpenAI.
