Torii

Task-Oriented Road Infrastructure Intelligence

Agent plugin for SUMO

Website | Install | Documentation | Signal-Control Audit | One-Prompt Demo | License

English | 简体中文 | Deutsch

Evidence-Aware OSM-to-SUMO Construction

Torii is designed for SUMO network construction work: one short natural-language prompt can become a bounded, evidence-aware, reference-comparable OSM-to-SUMO workflow with construction evidence, routeability checks, review artifacts, and a clear claim boundary.

The plugin now starts from a workflow router: torii_auto_workflow classifies the request, chooses skills, makes plans, and runs safe MCP steps to generate or modify the SUMO network for you.

Torii has two layers:

The architecture is documented in ARCHITECTURE.md: router, planner, executor, and reviewer. The repository guide explains where new work belongs, and the MCP tool catalog groups the public execution surface by capability.

Current MCP tools cover the torii_auto_workflow router, environment checks, config preflight, smoke runs, evidence bundles, OSM network construction, TLS candidates, multi-source TLS review tables, TLS aggregation review variants, code-native whole-network and source-to-candidate Connection Mode audits, strict standard three/four-way NEMA phase-binding candidates, connectivity checks, connected-core extraction, routeability probes, completion-aware routeability audits, overlapping top-level junction audits, reference join audits, junction aggregation review variants, and optional NetEdit launch evidence.

Current corridor acceptance boundary

Research status (2026-07-14): Stage 1-M is Machine REVIEW_READY. Thirty blinded held-out corridor packages, the full machine witness census, deterministic sampling, and provenance are frozen for human validation. This is not Stage 1 exit, an automatic-repair certification, or evidence that arbitrary OSM networks already reach expert NetEdit quality. See the Stage 1-M evidence.

Hamburg corridor digital twin: evidence report

The product target is the three-node Am Sandtorkai 2349 → 2394 → 2403 corridor. The model starts with OSM for continuous road geometry, applies bounded Torii cleanup, uses Hamburg MAP/OCIT-C/TLD and road datasets as authority for movements and signals, places SUMO detectors at official detector cross-sections, and solves for one plausible route realization whose virtual counts can be compared with the official observations. A route solution is not claimed to be a unique OD matrix.

Official Hamburg aerial, 2024

Official LSBG construction plan, 2022

OSM-derived input topology

Torii cleaned corridor — full Connection Mode

The final image is a background capture of the complete repaired network in Connection Mode, not a local crop. It binds to network SHA-256 2da03214…f5c559. A separate NeteditTargetSession check clicked the real 2403 network object and verified that the left pane says Net: junction, not polygon; that local proof is retained as repository evidence but is not used as the report's main image. The bounded 2403 single-core probe preserves all 18 boundary movements, has zero surface overlaps, loads in SUMO, and completes 18/18 movement smoke trips without collision or teleport. It remains review-only because Hamburg has not published a bindable 2403 MAP/OCIT package.

Signals, detectors, and reconstructed routes

Official Hamburg counts vs SUMO E1 readings

Counts below are sums over the stated station × 15-minute comparison bins. They come from the frozen W3/W4 evidence referenced in hamburg-digital-twin-evidence-summary.json.

This route reconstruction is deliberately described as non-unique. Torii enumerates 58 plausible corridor/branch routes and empirically builds a sensor-response matrix H by running one probe vehicle on each route and aggregating the physical SUMO E1 responses with Hamburg's official station-composition rules. For each 15-minute interval it solves

minimize  ||x_t - x_t_prior||_1
subject to H x_t = y_t
           x_t >= 0 and integer

where y_t is the official Hamburg count vector and x_t_prior is a feasible routeSampler realization. The matrix is 6×58 with rank 6 and nullity 52, so many different route vectors produce the same sensor readings. Torii therefore returns one prior-preserving feasible solution, schedules it in SUMO, and uses the resulting E1 residuals as feedback; it does not claim unique OD flows or individual vehicle trajectories. The exact TLS-off rows validate the estimator/controller loop, while the strict-history row is the current field-facing acceptance result and remains blocked.

Workflow v2 also blocks reuse across network builds: the frozen W1/W4 evidence binds SHA-256 559a5752…, while the older W2/W3 diagnostic evidence binds aa1676df…. Although W4 uses the W1 network, its pre-v2 manifest does not identify the selected W3b mapping or exact signal-event bytes. These runs remain historical diagnostics; W2, W3b, and W4 must be rebuilt before one v2 ledger can accept them.

What is shown vs what belongs in the repository

Sources and attribution are recorded in the image provenance. The official sources are the Hamburg LGV DOP service and the LSBG construction plan. Machine-readable headline evidence is frozen in docs/hamburg-digital-twin-evidence-summary.json; the iteration history is in the development log.

Reusable Hamburg workflow

Torii reuses the focused Hamburg modules rather than implementing a second network builder:

W0 -> W1
W1 -> W2
W0 -> W3a
(W1, W3a) -> W3b
(W1, W2, W3a, W3b) -> W4 route/demand + SUMO replay/comparison
W0-W4 ledger state -> W5 derived capability record

One portable JSON config drives the resumable ledger. W3a is network-independent; W3b, W2, and W4 must bind the exact W1 network SHA-256. W4 also consumes the selected W2/W3a/W3b identities and rejects unresolved shared-lane aggregation. W5 is a derived capability summary generated by the planner, not a product artifact or caller input. Copy the example, replace the <run> paths with stage manifests, then run:

python plugins/torii-sumo/scripts/run_hamburg_execution_plan.py --config hamburg-workflow.json

Every path is resolved relative to the config file. A changed upstream manifest or feedback hash invalidates only already-materialized dependent stages; no source network is overwritten, and a missing official asset remains a blocked gate rather than an inferred fact.

Teacher-free small-network discovery

The v2 small-network path no longer requires a teacher, reviewed scope, expected topology, or expected movement count. It scans signal anchors in a frozen OSM bbox, conservatively deduplicates physical-cell candidates, selects a graph medoid, and generates boundary ports, movement variants, and a split/merge/partial-repair candidate DAG before a materialized SUMO network may be used as post-hoc evidence. XS1 recovers four approaches and twelve movements; XS2 chooses a canonical node different from the old caller seed, still binds the materialized network, and preserves the 6-versus-7 movement disagreement instead of selecting an answer. See teacher-free discovery v2 for the design, pedestrian positive/negative controls, and reproducible results.

The v3 path now materializes one preregistered DAG variant without consuming a manual seed, reviewed scope, expected topology, or expected counts. On XS1 it generates the join patch from discovery, replaces the target's 10 fragmented TLS owners with one experimental controller, binds all 12 generated connections back to the sole movement semantic class, passes Connection Mode, independent conflict safety, zero outside-scope exact delta, SUMO load, and 12/12 routeability with zero collision or teleport. XS2 writes no candidate because its 6/7 movement variants disagree, and a held-out no-signal scene exits not_applicable. Merge remains an experiment rather than a topology truth claim; field timing, automatic topology selection, and automatic promotion stay blocked. See teacher-free materialization v3.

The verified v4 experiment removes the remaining “merge-first” assumption. From the same automatically discovered cell it independently materializes H_S (preserve split nodes under a shared controller), H_M (merge the physical cell), and H_P (preserve topology while rebinding local TLS ownership), then applies one common gate vector. On XS1, H_M and H_P both pass all machine gates and are therefore retained as anonymous blind-review alternatives; H_S is blocked by its independent conflict result despite loading and completing 12/12 routes. On the paired/offset negative control, four signal heads do not authorize a merge: two conflict centers and a storage-capable connector block H_M/H_P before candidate writing, while H_S passes all gates and 12/12 routes. XS2 still fails closed before materialization. A clean rerun reproduced every normalized candidate hash and verdict; 1,341 tests and Ruff pass. This is topology discrimination for review, not topology truth, field timing, or automatic promotion. See teacher-free topology discrimination v4.

python plugins/torii-sumo/scripts/run_teacher_free_discovery.py --osm <bbox.osm.xml> --output-dir <review-output>
python plugins/torii-sumo/scripts/run_teacher_free_topology_discrimination.py --osm <bbox.osm.xml> --output-dir <topology-review-output>
python plugins/torii-sumo/scripts/verify_teacher_free_topology_v4.py

The workflow emits hash-bound JSON, GeoJSON, HTML, and a manifest; the source OSM remains immutable and automatic promotion stays blocked.

The implementation track is now deliberately smaller than a corridor benchmark. XS-1 freezes one real four-way TLS intersection; XS-2 reuses the same contract on one real three-way TLS intersection. Both require exact lane movement, internal path, request/foes, TLS binding, independent conflict, SUMO load, all-movement routeability, rollback, and outside-scope zero-delta evidence. Both remain review-only and make no city-scale claim.

The implemented promotion contract is corridor-scale: accepted edits are materialized into a separate candidate, review locations are emitted as SUMO additional.xml, protected semantic or TLS deltas require an exact candidate-hash-bound review decision, and promotion remains blocked until identity, netconvert, XML, SUMO load, routeability, topology, and modal-connectivity evidence pass.

Every materialized edit now produces one review package: *.net.xml, *.map-review.json, *.accepted.review.add.xml, *.review.html, *.review.json, and hash-bearing manifests. The additional.xml layer is display-only and restricted to poi, poly, and param; human decisions live in structured JSON. Google Maps, satellite, Mapillary, KartaView, or the regional map provider are auxiliary evidence, and become a hard gate only when an edit explicitly declares map_review_required: true with an explicit current or historical time scope.

The reproducible real-SUMO runner covers four-way OSM sidewalk, official pedestrian crossing/TLS review, five-way bicycle, and five-way ramp scenarios:

python plugins/torii-sumo/scripts/run_corridor_contract_regression.py

It rebuilds source networks instead of relying on old generated output. The current architecture and remaining debt are recorded in docs/architecture-audit-2026-07-13.md.

Code-native Connection Mode gate

sumo_network_connection_mode_audit reconstructs NetEdit Connection Mode directly from .net.xml; the OSM cleanup workflow runs it by default, while its user-facing NetEdit launch now defaults to off. For every relevant junction it validates direct fromLane -> toLane -> via bindings, complete internal-lane continuation, lane and permission existence, request ordering and bitstrings, turn-lane order, lane-rank/crossed mappings, incoming and outgoing motor-lane coverage, TLS linkIndex bounds, controller state-string lengths, shared foe signal groups, and foe movements that receive protected G together. SUMO-managed rail_signal links are classified separately instead of being mistaken for missing road tlLogic programs.

Results have three meanings: invalid XML/path/request/linkIndex structure is fail; legal but ambiguous merges, fanouts, lane drops, additions, or signal conflicts are review_required; only a finding-free junction is pass. Both non-pass classes block automatic candidate promotion. The tool writes JSON, a display-only review additional.xml, and a source-hash-bound manifest. NetEdit is therefore optional and limited to flagged visual review; routeability alone is never treated as lane-binding proof.

sumo_network_connection_mode_regression_audit is the source-to-candidate gate. It audits both .net.xml files, closes the declared edit scope over touched TLS-controller members, and compares per-junction finding categories without relying on unstable internal connection indices. New structural or review findings inside the target scope, any regression outside it, and unexplained outside-scope junction identity changes all block promotion. The teacher-guided repair queue runs this differential gate automatically and records its JSON, display-only additional.xml, and SHA-256 manifest beside every materialized full-network candidate. A failed earlier semantic/parity gate does not suppress this diagnostic audit when a candidate file exists.

On the current Ingolstadt same-bbox effective network, the whole-network audit covered 2,274 junctions and 13,169 direct movements, proving 13,169/13,169 internal paths. It found zero structural failures: 2,164 junctions pass and 110 require evidence review. The queue includes 27 incoming motor lanes without a junction connection, 19 outgoing motor lanes without a source connection, legal merge/fanout patterns, and one current TLS protected-green foe pair at junction 267517559. Twelve implicit railway controllers are correctly recorded as SUMO runtime rail signals. No repair is inferred from those observations without OSM/map/lane evidence.

The current Südliche Ringstraße reconstruction is deliberately not promoted. The differential gate exposed a plain-XML round-trip bug that re-applied type-level sidewalkWidth/bikeLaneWidth, shifted lane indices, and created 1,828 outside-scope review regressions. Round-trip type sanitization removed that global failure. The latest safe-default candidate now has zero outside-scope structural findings, review regressions, or junction identity changes, but remains blocked on 13 new target-scope structural findings and 27 target-scope review findings because only three nodes of a more complex signal cell are mapped. An experimental whole-controller join was also rejected. No routeability claim or source-network mutation is made for either blocked candidate.

Standard three/four-way NEMA binding

sumo_network_standard_nema_phase_binding is now part of the OSM cleanup boundary. With no junction_id, it scans the effective cleaned network and emits an eligibility queue, a dedicated Connection Mode JSON report, display-only review additional.xml, HTML, decision contract, and hash-bearing manifest. It does not batch-edit the network. With one eligible junction_id, it creates a separate reversible candidate, maps protected lefts to odd NEMA phases and through/right movements to even phases, rewrites only the selected controller's linkIndex groups and tlLogic, then requires netconvert, SUMO load, and routeability gates.

The canonical four-way mapping is cross-ring: one main approach uses left/through-right phases 5/2 and its opposite uses 1/6; the minor approaches use 7/4 and 3/8. This permits the documented compatible combinations 1+5, 1+6, 2+5, 2+6 and their minor-street equivalents. The three-way form uses SUMO NEMA missing-phase 0 placeholders and repeats phase 4 across the empty side of the second barrier. Before any candidate can be written, a hard Connection Mode gate traces every fromLane -> toLane -> via through its complete internal-lane chain, checks right-hand turn-lane order and lane-rank jumps, validates the request/foes matrix, and rejects any movement pair that canonical NEMA may serve concurrently when SUMO marks the pair as foes. Joined controllers, pedestrian/internal or rail links, bicycle-only movements, turnarounds, linkIndex2, ambiguous geometry, incomplete arm-to-arm movements, and non-dedicated protected-left lanes also fail closed. Even a fully passing candidate remains review_required, because the generic 90-second plan is not field-calibrated timing.

The phase/ring contract follows the official SUMO NEMA controller documentation, signal groups follow SUMO's documented linkIndex state-string semantics, and request/foe indexing follows the official SUMO road-network format. Routeability runs enable SUMO junction-collision checking; graph reachability alone is never accepted as Connection Mode evidence.

The local SUMO 1.27.1 reference acceptance passed both a standard four-way and a T-shaped three-way: each passed Connection Mode, candidate validation, netconvert round trip, SUMO load, and 12/12 routeability with junction collision checking enabled and zero collisions or teleports. The four-way verified 12 internal movement paths and bound them to phases 1–8; the three-way verified 6 paths and used phases 1/2/4/6 with rings 1,2,0,4 and 0,6,0,4. The current Ingolstadt same-bbox scan runs against the effective TLS-cleaned network, which SUMO loads, and found 249 TLS-junction review records, including 24 three-way and 4 four-way geometric layouts, but deliberately auto-qualified none. All 1,617 request-bound movement paths are structurally valid: 221 TLS junctions pass the Connection Mode proof, 28 are review_required, and none has a structural failure. Among the 28 standard geometric layouts, 15 pass and 13 require evidence review. A review finding means automatic safety cannot yet be established, not that the marked link is certainly wrong. The unified display-only review layer keeps the 28 connection-review locations distinct from the 221 locations blocked only by other NEMA-scope conditions, without changing the effective network.

Ingolstadt teacher-corridor slice

The first same-bbox teacher slice is now executable end to end:

python plugins/torii-sumo/scripts/run_ingolstadt_corridor_teacher.py

The default remains the bounded one-junction slice. To compare raw same-bbox OSM against the full human-cleaned reference, including reference-cluster matching, aggregation-candidate estimation, and differential gates, use the same runner in full reference mode:

python plugins/torii-sumo/scripts/run_ingolstadt_corridor_teacher.py --workflow-mode reference-matched

This mode delegates to Torii's existing reference_matched OSM cleanup workflow; it does not introduce a second cluster-matching algorithm. It keeps raw OSM, aggregation candidates, teacher replay candidates, and the human reference as separate hash-bound artifacts. It defaults to estimator-only; teacher replay and expensive candidate materialization are an explicit --materialize-teacher-candidates opt-in. Whole-network TLS aggregation is disabled in this estimator path so it cannot alter the OSM baseline before a single conflict-core candidate passes preservation and geometry gates.

It downloads the current OSM bbox, builds a raw visual-detail network, applies only a narrowly proven structural repair, runs SUMO load and completion-aware routeability, and compares junction 267517510 with the manually cleaned TUM cell. The structural repair is a separate candidate: it removed one stale TLS identity from an already-uncontrolled pedestrian-internal connection, left 58 embedded tlLogic programs and 12 implicit railway controllers intact, verified the source hash was unchanged, and emitted a rollback plan plus display-only review additional.xml.

The latest local SUMO 1.27.1 acceptance run loaded successfully and completed 10/10 generated trips with zero collisions and teleports. Teacher transfer remains review_required: current OSM already supports the traffic-light control and contains three explicitly signalized crossing nodes, while the candidate still differs in pedestrian internal structure and movement signatures. Torii therefore does not replay the old teacher TLS blindly. The generated run manifest and HTML bind the exact OSM, source, candidate, map evidence, and review artifacts by SHA-256.

For deterministic replay after an online acquisition, pass both --candidate-net and --source-osm; the runner skips Overpass but keeps the exact OSM evidence in the teacher comparison and manifest. A download failure remains a blocked run rather than silently reusing cached output.

Example

Use the prompt to test Torii:

Use Torii to clean the Ingolstadt city-center network from OSM, compare it with the TUM-VT/sumo_ingolstadt cleaned network for the same bbox, run the code-native Connection Mode audit, and open only flagged junctions in NetEdit if visual review is needed.

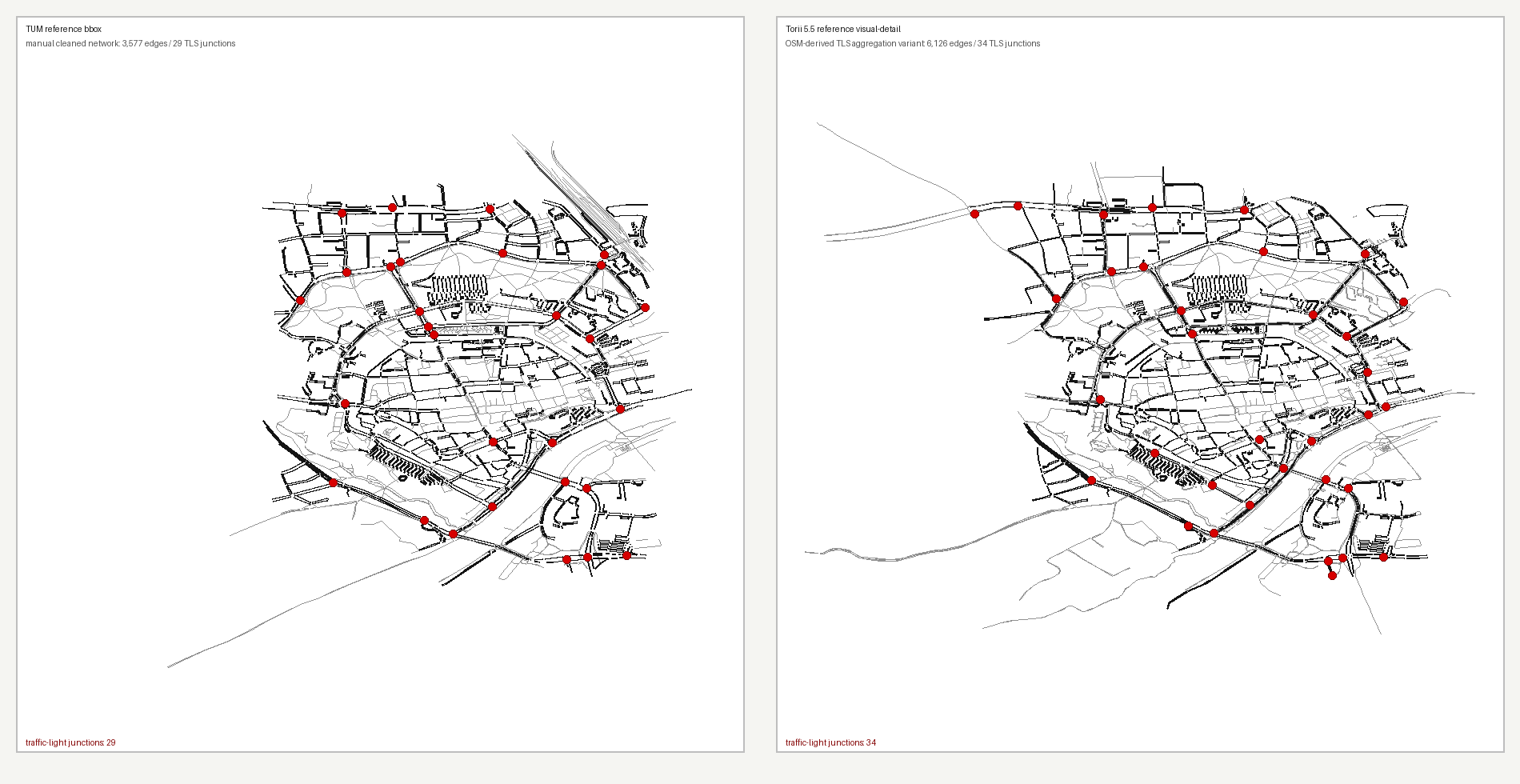

This demo uses Ingolstadt city center to test whether a Torii OSM-derived workflow becomes more auditable and closer to a manually cleaned reference network than raw import success alone. The proven acceptance claim is currently the single-corridor slice above; the older full-bbox table below remains diagnostic evidence, not a city-scale automatic-equivalence claim.

See examples/02_one_prompt_osm_network. The 5.5 comparison networks and screenshots are committed there; generated OSM extracts, route files, and full logs remain rebuild-only artifacts.

Quick Start

Install from GitHub:

codex plugin marketplace add Tarard/Torii-SUMO --ref main
codex plugin add torii-sumo@torii-sumo

Start a new Codex or Claude Code thread after installing so the plugin's skills and MCP tools are discovered.

Full setup details: Codex Plugin Installation.

What You Can Ask Me

Boundaries

Torii builds and audits SUMO artifacts, but it does not certify a model as correct.

• OSM imports remain diagnostic until road scope, connectivity, routeability, TLS reality, and map baseline evidence are checked.
• connected-core networks are useful for smoke tests, but discarded fragments and topology warnings remain part of the claim boundary.
• It does not prove traffic-light timing, phasing, demand realism, controller correctness, or full experiment validity.

License and Notices

Source code is licensed under PolyForm Noncommercial 1.0.0. Skill files, docs, checklists, examples, and protocol text are licensed under CC BY-NC 4.0. Commercial use requires separate written permission. Both scopes are recorded in LICENSE.

Eclipse SUMO is a trademark of the Eclipse Foundation. Map data in the OSM demo is © OpenStreetMap contributors and available under the Open Database License (ODbL).

Earlier skill-only releases are archived on Zenodo: https://doi.org/10.5281/zenodo.20627976
