Build Beamer Slides

build-beamer-slides is a Codex skill for designing, implementing, rendering, and reviewing Beamer presentations. It supports complete decks, selected groups of slides, and page-by-page collaboration.

The user controls the subject, narrative order, and emphasis. The skill handles page structure, Beamer implementation, diagram geometry, compilation, screenshot inspection, and repair of basic visual defects before human content review.

Examples

Technical systems and workflows

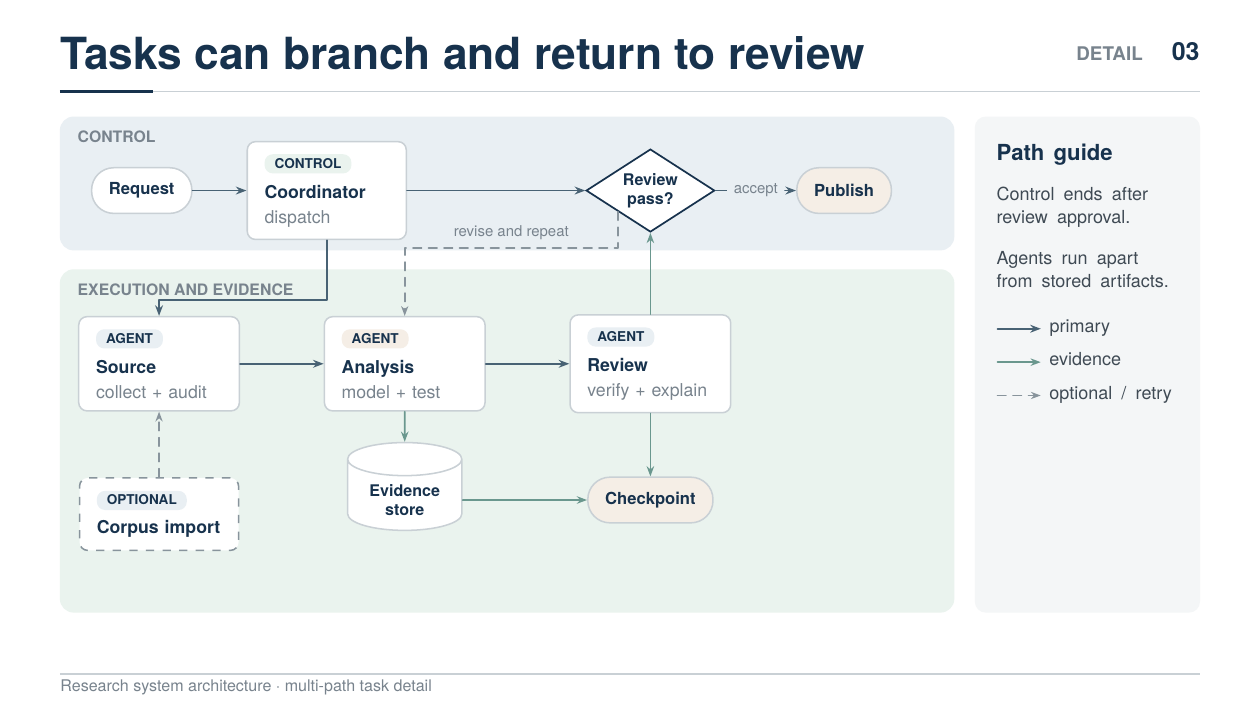

The system architecture example uses grouped subsystems, tagged cards, decisions, artifacts, optional inputs, and an external revision path.

Source | PDF

Three included styles

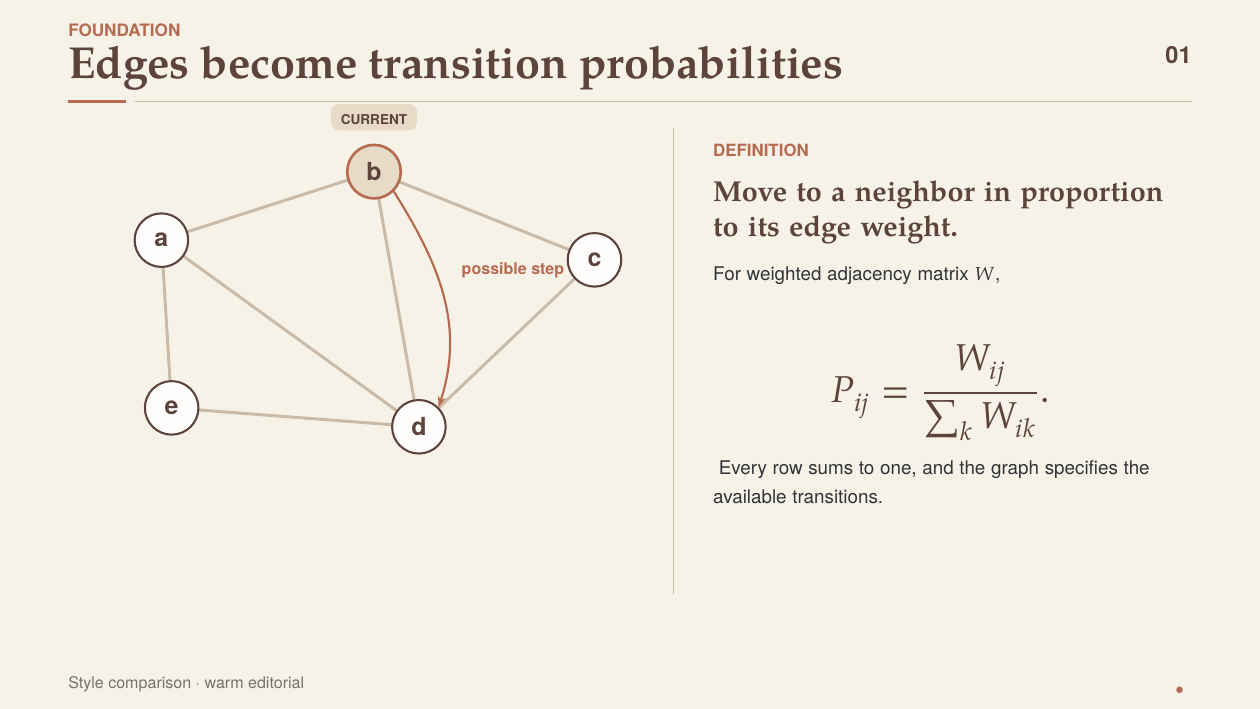

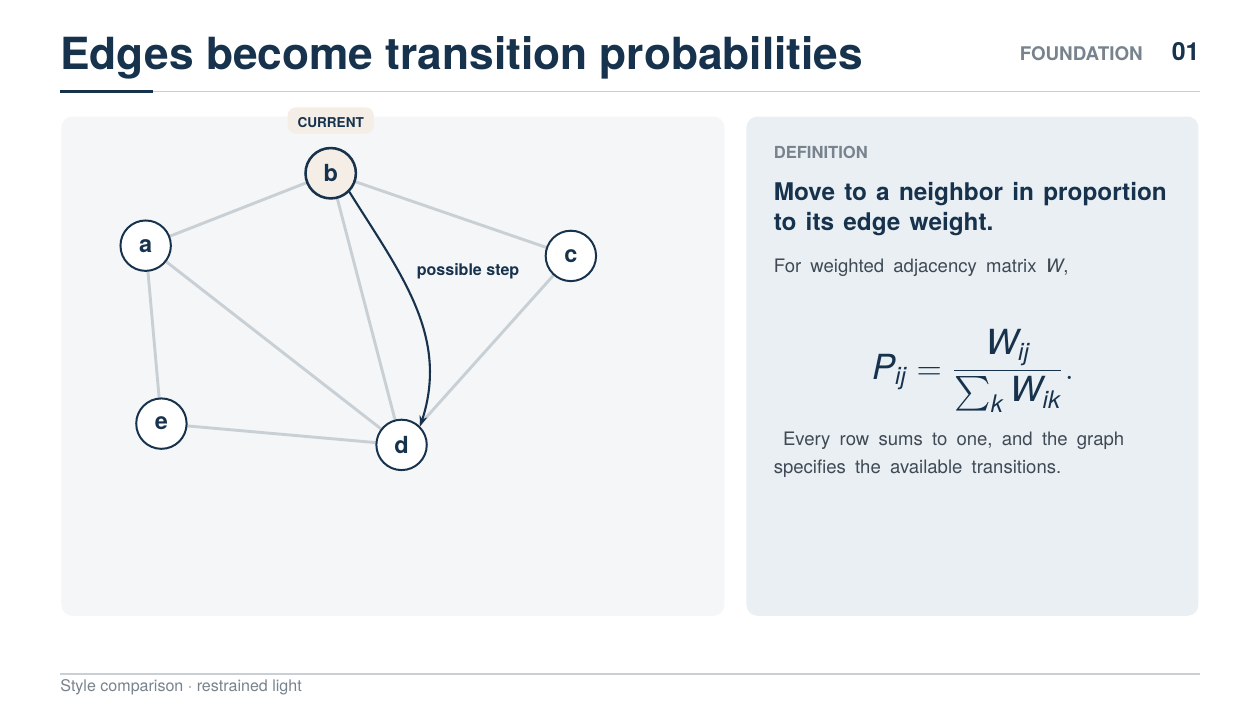

Restrained Light	Warm Editorial

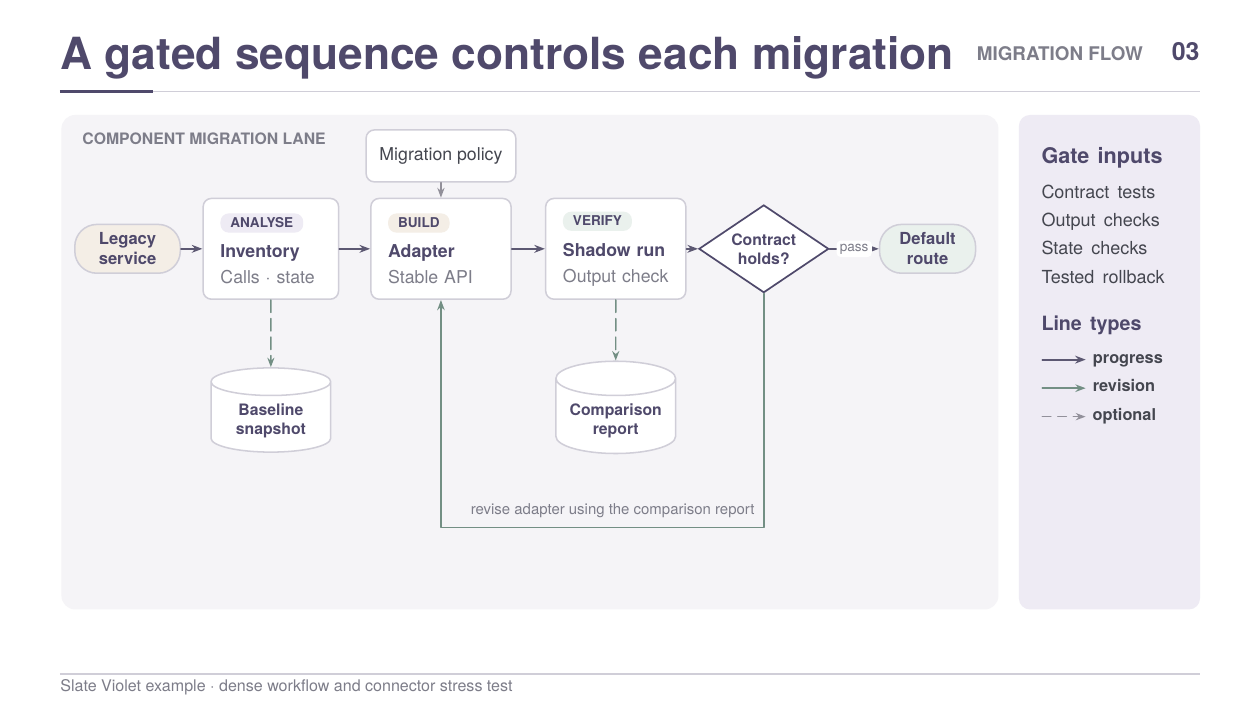

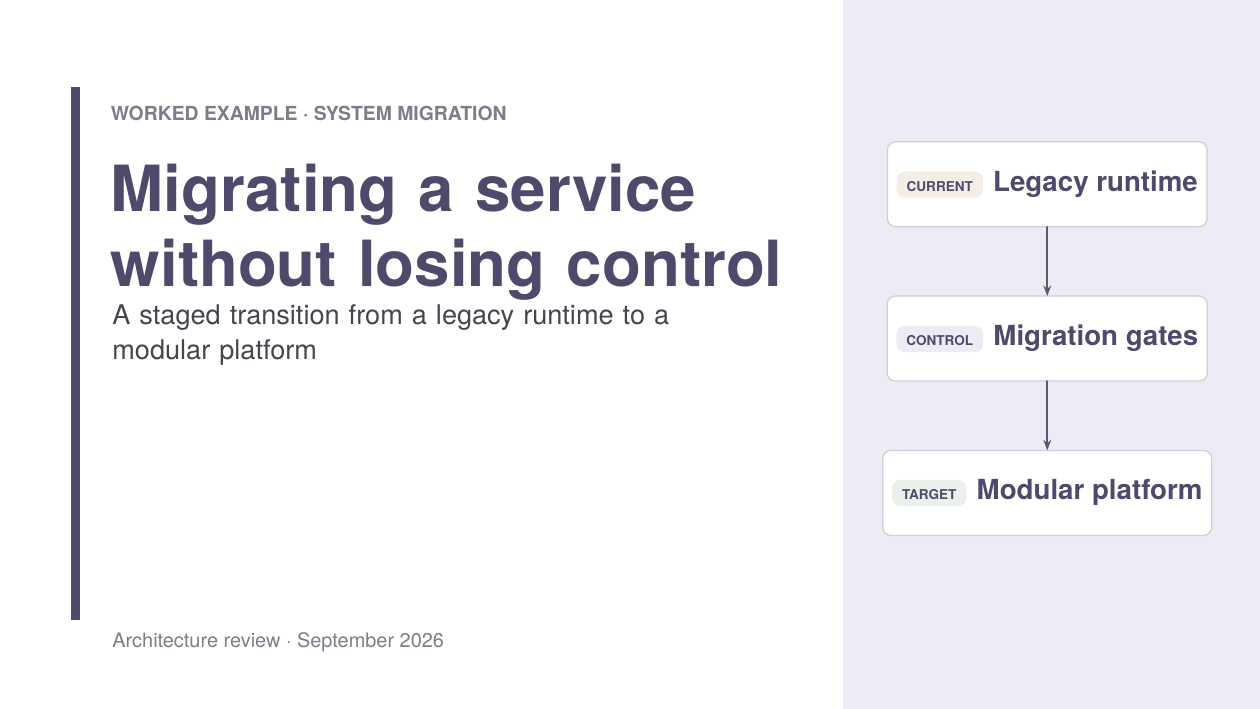

Slate Violet cover	Slate Violet workflow

The first pair presents the same graph and transition rule in two styles. The Slate Violet example uses a separate technical palette and a denser workflow.

Results and mathematical figures

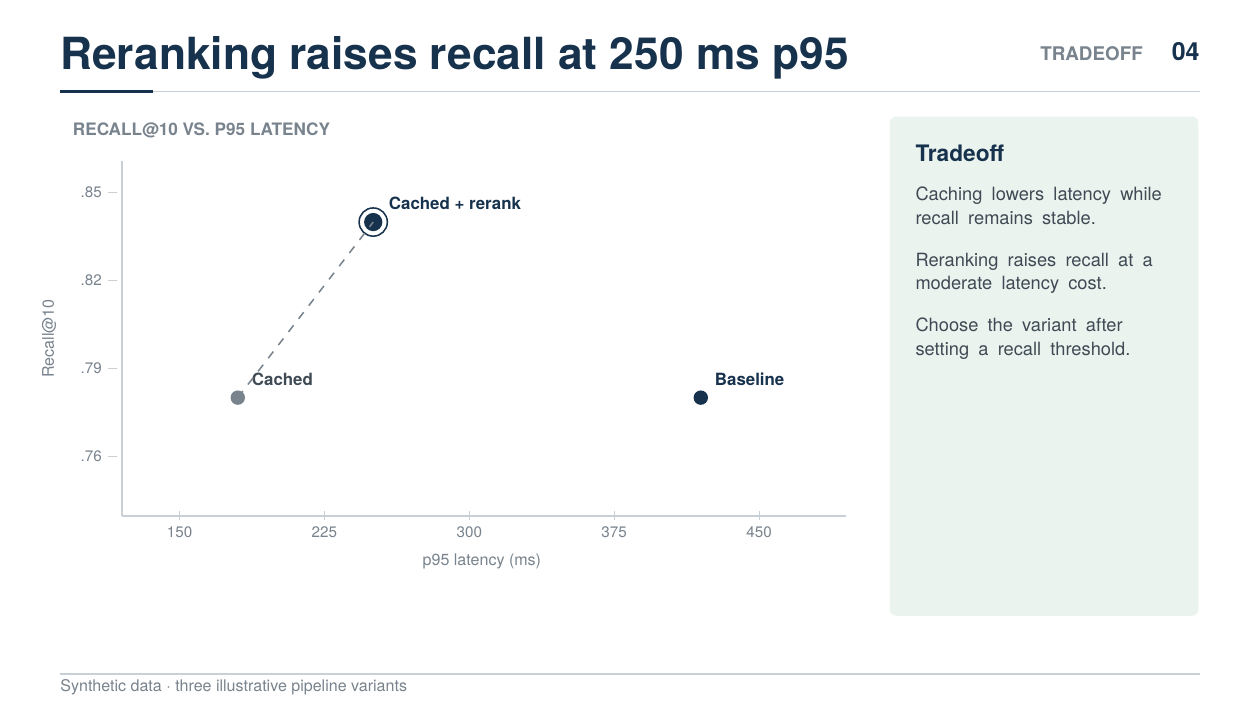

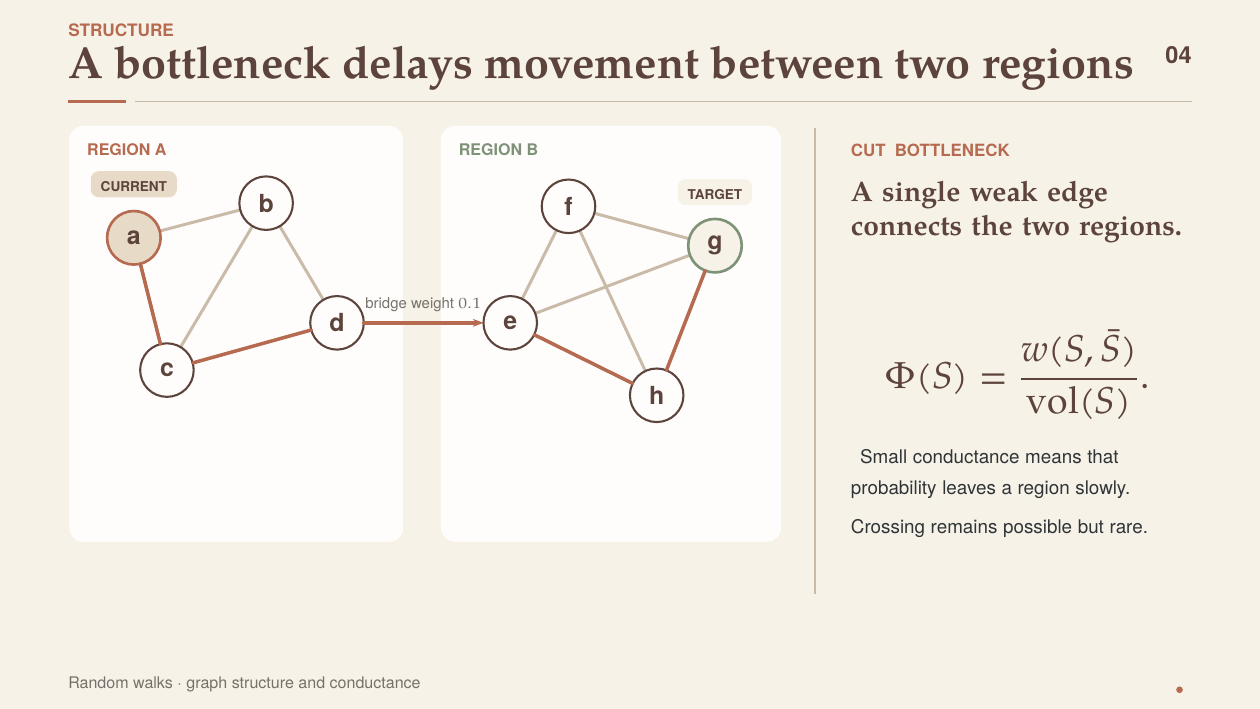

Experimental comparison	Bottleneck graph

The experimental values are synthetic and exist only to demonstrate layout. The mathematical example includes graph diagrams, matrices, definitions, and directly labelled curves.

What the skill provides

• a restrained light default style and two optional built-in styles;
• reusable Beamer templates, TikZ components, and worked source files;
• layout rules for titles, text, cards, diagrams, formulas, tables, and charts;
• explicit connector ports, routing corridors, group-boundary checks, and edge-label conventions;
• English, Chinese, and mixed-language slide-text guidance;
• a compile, render, inspect, and repair loop with 400 to 600 dpi local crops for dense geometry;
• a user-selected independent reviewer subagent for a stronger audit when the additional time and token cost is worthwhile;
• helper scripts that compile twice, reject relevant LaTeX diagnostics, render pages, and validate all bundled examples.

Install

Clone the repository directly into the Codex skills directory:

mkdir -p "${CODEX_HOME:-$HOME/.codex}/skills"
git clone https://github.com/xukp20/build-beamer-slides.git \
  "${CODEX_HOME:-$HOME/.codex}/skills/build-beamer-slides"

Reload Codex after installation so the skill is discovered. Update an existing installation with git pull --ff-only from the cloned directory.

Use

Name the skill directly:

Use $build-beamer-slides to create a five-page technical presentation from these notes. Use the default light style and give me the editable source and PDF.

It also works with an existing deck or a single-page repair request:

Use $build-beamer-slides to revise slides 4 to 6 of this Beamer deck. Preserve its current style and inspect every changed page.

Use $build-beamer-slides to repair this workflow slide. Check every connector, container boundary, and multiline label at high resolution.

A custom request may supply a reference deck, screenshots, brand colors, fonts, a logo, or a project-local template. Custom styling does not remove the review and legibility requirements.

Built-in styles

Custom style configuration explains how to define a deck-local style or package a reusable one.

Review workflow

Before slide production begins, the skill asks the user to choose between self-review only and self-review + independent reviewer. The author performs the complete self-review in both modes.

Every changed page follows the same authoring loop:

1. State the page's main message and choose a suitable visual form.
2. Draft concise text and assign explicit geometry to containers and diagrams.
3. Compile twice and reject relevant LaTeX errors and overfull boxes.
4. Render every changed page at 200 dpi and inspect the complete frame.
5. Render dense junctions, bends, labels, overlays, group entries, and outermost nodes at 400 to 600 dpi.
6. Repair the source, recompile, and repeat the affected checks.
7. Mark the artifacts ready for delivery or independent review only after the basic layout checks pass.

When independent review is enabled, a separate read-only reviewer inspects the current PDF, every full-page render in scope, and the required high-resolution crops. The reviewer reports findings to the author, the author repairs and re-renders the slides, and the same reviewer checks the updated artifacts. This continues until the reviewer returns PASS or identifies a decision that belongs to the user. When independent review is disabled, the author delivers after completing step 7.

The review covers text clearance, natural line breaks, card padding, title and separator spacing, connector endpoints, arrowhead alignment, route bends, chart labels, formula consistency, and agreement between text and graphics.

Detailed references:

• page audit checklist
• render and review loop
• independent reviewer workflow
• diagram design
• slide text

Build and validation tools

The standard render helper requires XeLaTeX, pdfinfo, and pdftoppm:

scripts/render_and_check.sh examples/research-system-architecture/deck.tex /tmp/architecture-render

It compiles twice, checks the log, and renders the selected pages at 200 dpi. Screenshot inspection is still required.

Create a high-resolution crop for a dense region with:

scripts/render_pdf_crop.sh \
  examples/research-system-architecture/deck.pdf \
  3 /tmp/review/control 600 144 324 2736 672

Compile and render every bundled deck with:

scripts/validate_examples.sh /tmp/beamer-example-review

The built-in styles require TeX Gyre Heros, TeX Gyre Pagella, and TeX Gyre Pagella Math. Minimal TeX installations may omit the corresponding tex-gyre and tex-gyre-math packages. If a build reports that one of these fonts cannot be found:

• TeX Live: run tlmgr install tex-gyre tex-gyre-math.
• MiKTeX: install tex-gyre and tex-gyre-math in MiKTeX Console, or run miktex packages install tex-gyre tex-gyre-math. Automatic installation of missing MiKTeX packages is a separate setting in MiKTeX Console.

A custom style should document any additional font or asset requirements.

Worked source files

The examples are tested references, not fixed narratives. Adapt their components to the target content and re-run the complete visual review after changing text or geometry.

Repository layout

.
├── README.md
├── README.zh-CN.md
├── SKILL.md
├── agents/
├── references/
├── scripts/
├── styles/
│   ├── light/
│   ├── warm-editorial/
│   └── slate-violet/
├── examples/
│   ├── research-system-architecture/
│   ├── experimental-results-review/
│   ├── random-walks-on-graphs/
│   ├── software-system-migration/
│   └── style-comparison/
├── gallery/
└── reviews/

License

MIT. See LICENSE.
